SAUNDERS® Standard Machined Block
Saunders® range of standard machined block bodies incorporate Zero Deadleg T pattern and U Bend (Point of Use) body variations to provide high integrity branch or sample points from high purity water loops. The design optimises drainability , eliminates dead-leg or hold up volume and is available with additional back sample weirs to comply with customer specification.
Features And Benefits
Technical Details

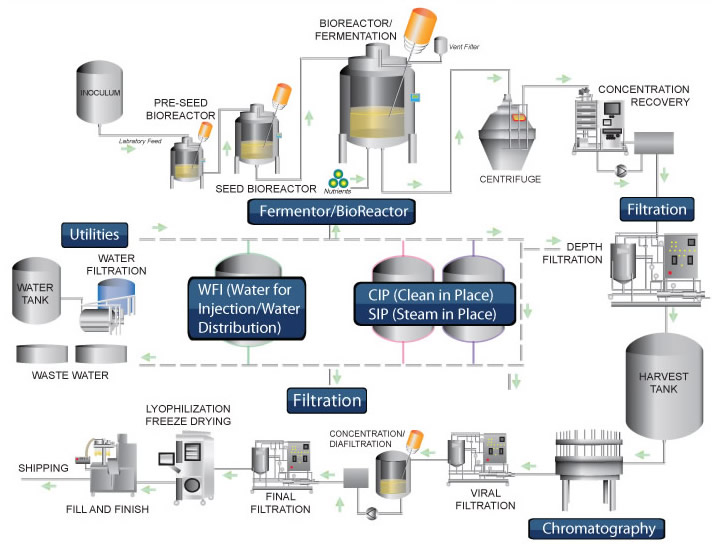

Applications
Literature
Certificates
Videos
Features And Benefits
- Machined Block construction, free from internal fabrication welds to enhance structural integrity
- Zero Deadleg design ensures optimum drainability of main line
- Compact size envelope reduces internal wetted area
- Flexibility of design allows easy incorporation of integral purge/sample valves
Technical Details
DESIGN FEATURES
- Zero deadleg range of solutions for sampling and take off from high purity water systems and to enhance the integrity and security of critical systems
- A class leading platform of T and Point of use designs and also offer integral sampling options on upstream or downstream side
MATERIALS OF CONSTRUCTION
- Standard 316L ASTM A-479
- DIN 1.4435, AL6XN, Hastelloy and other materials available on request
SIZE RANGE
- Main Line: DN8 (0.25″) – DN150 (6.00″)
- Branch/User Point: DN8 (0.25″) – DN100 (4.00″)
SPECIAL OPTIONS
- Custom designs available to address unique piping challenges
