SAUNDERS® S360
The Saunders® S360 piston actuator permits remote operation of the valve, either as an alternative to manual operation or as an integral part of a control system. The S360 is a compact, lightweight, piston-type pneumatic actuator which has been developed to deliver superior performance for sterile BioPharm applications.
Features And Benefits
Technical Details
Applications
Literature
Certificates
Videos
3D / AR Viewer
Features And Benefits
- Modular range delivers compact dimensional envelope to reduce dead-leg between associated valves and optimizes system design
- Maintenance free piston technology provides powerful closure performance
- Smooth corrosion resistant profile optimizes cleanability
Technical Details
DESIGN FEATURES
- Modular design (Lite and Power) to deliver optimum dimensional envelope and industry leading closure performance
MATERIALS OF CONSTRUCTION
- Stainless Steel 316 polished construction
SIZE RANGE
- DN8 (0.25”) – DN100 (4.00”)
TEMPERATURE RANGE
- -10 °C (14 °F) to 100 °C (212 °F) Operating
CLOSURE PERFORMANCE
- S360 Lite
- Elastomer Diaphragm – 10 bar (145 PSI)
- PTFE Diaphragm – 8 bar (116 PSI)
- S360 Power
- Elastomer Diaphragm – 10 bar (145 PSI)
- PTFE Diaphragm – 10 bar (145 PSI)
MODES OF OPERATION
- Spring-to-Close
- Spring-to-Open
- Double Acting
SPECIAL OPTIONS
- Limit Open Stop available for Spring-to-Close Mode

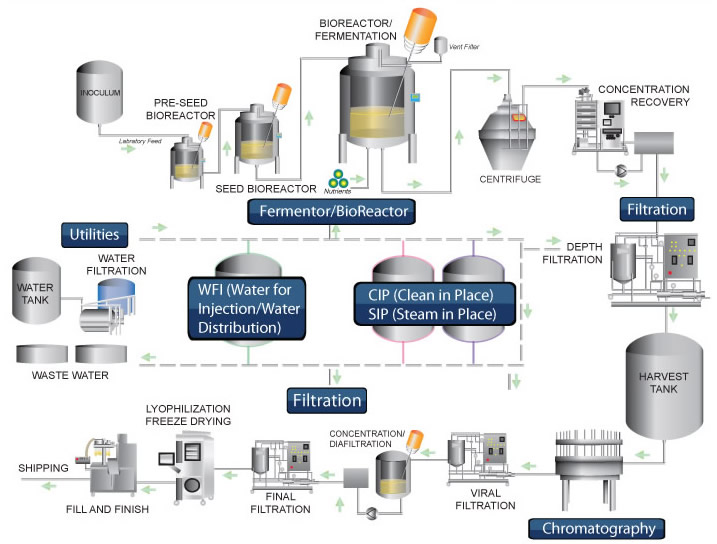

Applications
Literature
Brochure
Datasheet
Manual
Explore Innovation with Our 3D Viewer and AR Tool
Discover our S360 Actuators through an immersive 3D viewer and Augmented Reality. Engage in three exploration modes that guide you through essential product features, detailed components, and animations. Simply scan the QR code to experience it on your mobile devices or share the immersive encounter with your network.
