SAUNDERS® 2-Way Body
Saunders® 2-way valve body is the basic building block of diaphragm valve technology providing cavity free bi-directional flow and optimum drainability.
Features And Benefits
Technical Details
Applications
Literature
Certificates
Videos
Features And Benefits
- Readily incorporated into valve cluster and access valve fabrications
- Materials of construction and surface finish compatible with industry standards system requirements
- Full traceability to EN 10204 3.1 and ASME BPE
Forged body features
- Hash marks to indicate self drain angle
- Integral weld and hygienic clamp ends
- Controlled sulfur, 0.005% – 0.017 per ASME BPE Standard
Technical Details
DESIGN FEATURES
- Standard 2-Way valve body is the basic building block of diaphragm valve technology
- Bi-directional flowpath and optimum drainability in both horizontal and vertical orientation
MATERIALS OF CONSTRUCTION
- Stainless Steel dual certified to 316L (ASTM A-182) and DIN 1.4435 and compliant to ASME BPE Controlled Sulphur (0.005-0.017% max). Ferrite < 0.5%
- Alternative materials available on request – Hastelloy, Titanium, 904L and AL6 XN
SIZE RANGE
- Pure Performance (Bio-Seal) Forged Body: DN8 (0.25″) – DN15 (0.50″)
- Forged Stainless Steel 2-Way: DN15 (0.50″) – DN100 (4.00″)
- Investment Cast Stainless Steel 2-Way Bodies: DN15 (0.50″) – DN100 (4.00″)
- Machined Block 2-Way Valve Body: DN150 (6.00″)

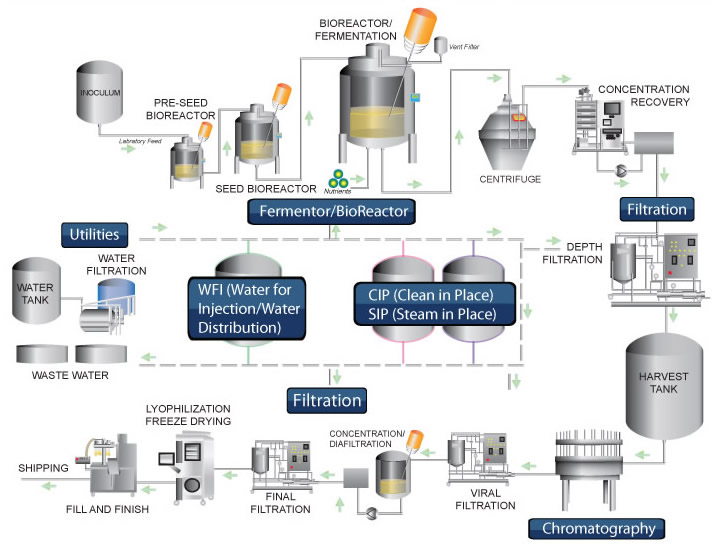

Applications
Literature
Brochure
Flyer
SAUNDERS® 2-Way Forged Bodies – EN
SAUNDERS® 2-Way Forged Bodies – US
SAUNDERS® 2-Way Forged Bodies – CN
SAUNDERS® 2-Way Drain Angles – EN
SAUNDERS® 2-Way Drain Angles – CN
Datasheet
Saunders® HC4 2-Way Forgings Optimum Drain Angles – Datasheet (EN LT)
Saunders® HC4 Flow Coefficients 2-Way Forgings – Technical Datasheet (EN LT)
Saunders® HC4 BioPharm Bodies Materials of Construction – Technical Datasheet (EN LT)
Saunders® HC4 Marking of BioPharm Bodies – Technical Datasheet (EN LT)
