SAUNDERS® SR Steam Resilience TFM Diaphragm
SaAUNDERS Life Science Modified PTFE (TFM) diaphragms are robust two piece leaf type. The design incorporates a TFM wetted face backed with a fabric reinforced support diaphragm.
Features And Benefits
Technical Details
Applications
Literature
Certificates
Videos
Features And Benefits
- Significant reduction in creep and deformation under aggressive sterilisation regimes
- Increased resistance to permeation compared with standard PTFE
- Full batch traceability provides maximum security, reliability and repeatable performance
Technical Details
DESIGN FEATURES
- Bayonet style attachment to permit “float” in compressor attachment and avoid point loading/mechanical stress
MATERIALS OF CONSTRUCTION
- Modified PTFE resin (TFM) wetted contact face with EPDM support backing
SIZE RANGE
- DN8 (0.25”) – DN200 (8.00”)
TEMPERATURE RANGE
- -20 ⁰C (-4 ⁰F) to 160 ⁰C (320 ⁰F)

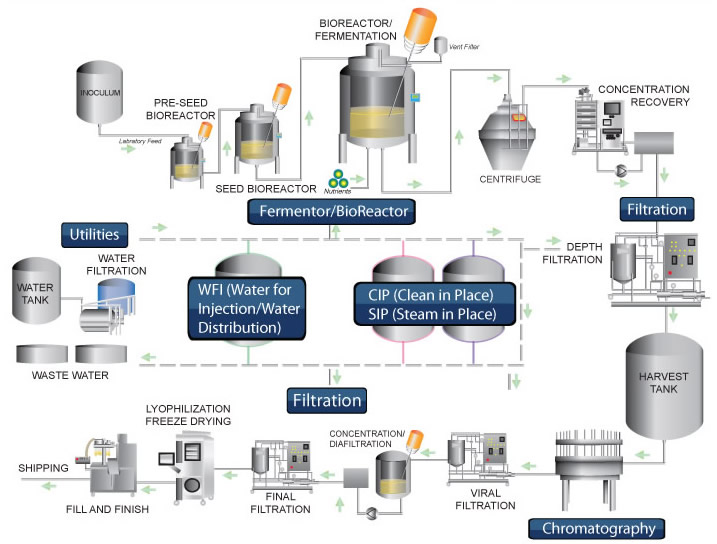

Applications
Certificates
- FDA-compliant to 21CFR part 177.1550
- Compliant to USP Class V and VI, <87>, <88>
- Compliant with ASME BPE part SG
- Certified ADCF (Animal Derived Component Free), certified phthalate free and PFOA free
- Fully lot traceable to EN 10204 3.1
