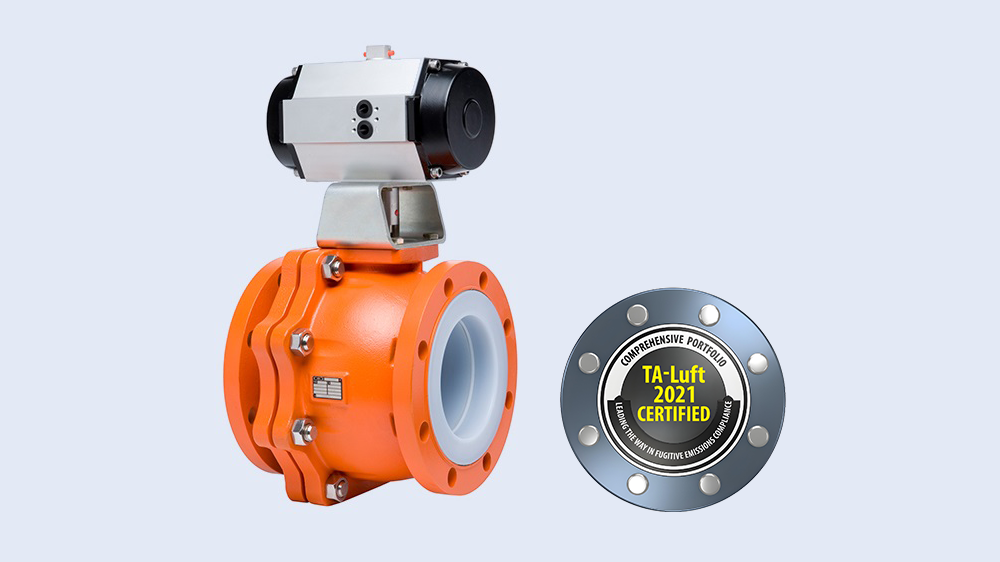

XOMOX® Lined Ball Valves Series XLB

XOMOX® XLB Lined Ball Valves offer economical solutions for the vast majority of chemical applications while maintaining the highest possible degree of performance in terms of in-line leakage and fugitive emissions with the Patented SX stem seal design.

Features And Benefits

  • Lower torque smaller actuators, reduced costs, space and weight saving.
  • Compact design allows installation in space restricted areas in parallel piping systems.
  • Actuator mounting fully compliant with ISO 5211 allowing use of standardized mounting kits.
  • The SX seal in the XLB valve moves in conjunction with the spherical portion of the stem, maintaining a constant seal.
  • The body assembly has metal-to-metal connection that offers resistance against forces that may be created in the pipework.

Technical Details

DESIGN FEATURES

  • All wetted components are fully lined with permeation resistant PFA material as a barrier to corrosion.

SIZE RANGE

  • ½“ / DN 15 through; 6“ / DN 150 Full Port; 1½” through 8″ Standard Port
  • Other sizes available up to 12“ / DN 300

PRESSURE RATINGS

  • PN 16, Class 150

TEMPERATURE RANGE

  • ASME: -20°F (-29°C) to 400°F (204°C)
  • EN: -10°C (14°F) to 204°C (400°F)
  • Above data is for ductile iron lined valves, see pressure temperature ratings in our Technical Datasheet brochure for extended temperature capabilities with alternative materials

Applications

  • Chlorine
  • Benzene
  • Bromine
  • Sulfuric Acid
  • Nitric Acid
  • Hydrochloric Acid
  • Phosphoric Acid
  • Sea Water

Certificates


  • ASTM D5162
  • ANSI B16.34
  • B16.42 shell tests
  • MSS SP-61 seat test
  • ISO 15848 BH CO3 SSA3
